SPECIFICATIONS

Brand Name: Reolink

Hign-concerned Chemical: none

Origin: Mainland China

Connection Type: WireLess

Power: Electric Supply

Display: Color

Feature: Photograph

Feature: Video

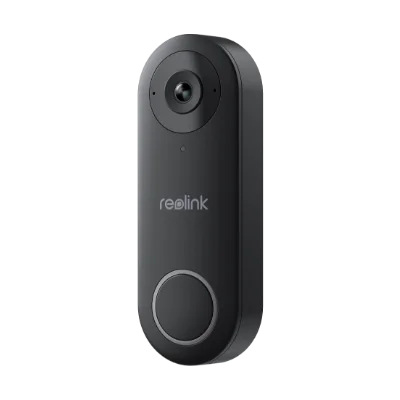

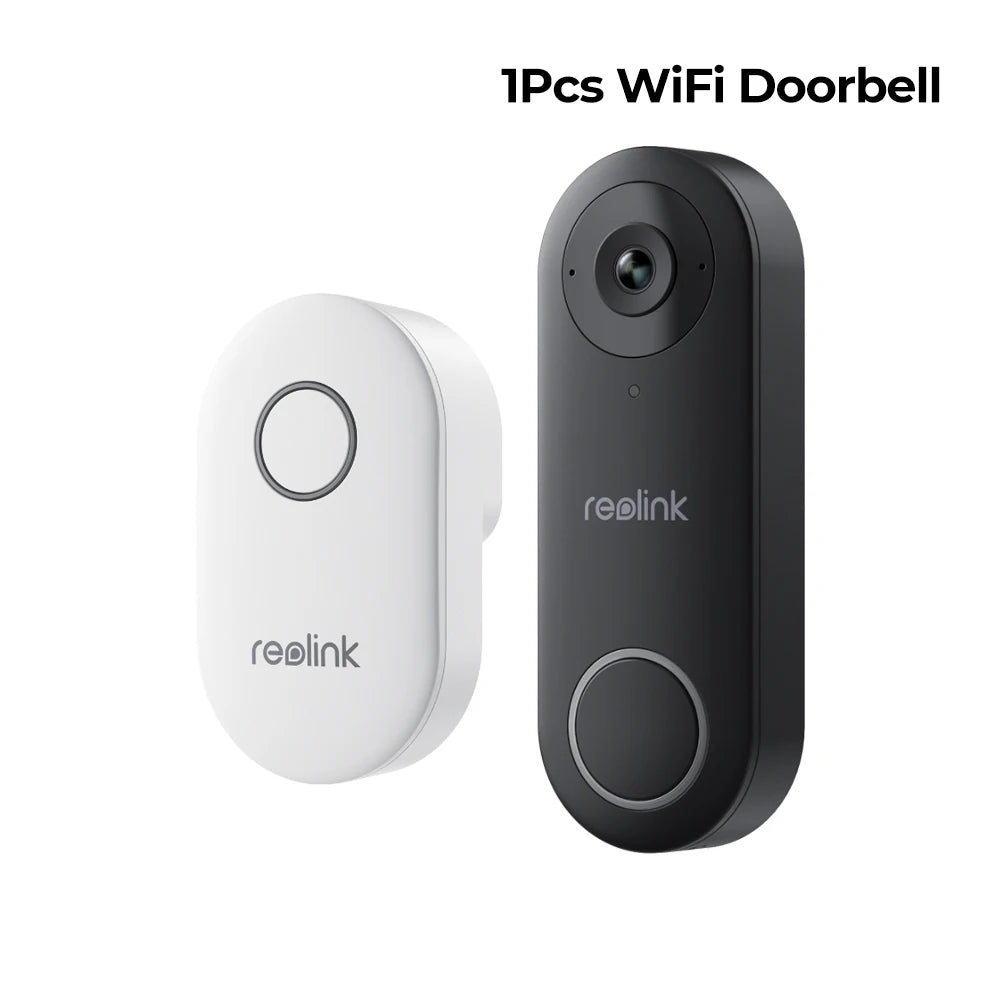

Item Type: VIDEO DOORBELL

Itercom: Yes

Alarm: Yes

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

Smart home platform: Alexa

Smart home platform: Google Assistant

Video Resolution: 2560X1920 (5mp) @20FPS

Image Sensor: 1/2.7"

Lens: f=2.26mm F=2.0, with IR cut

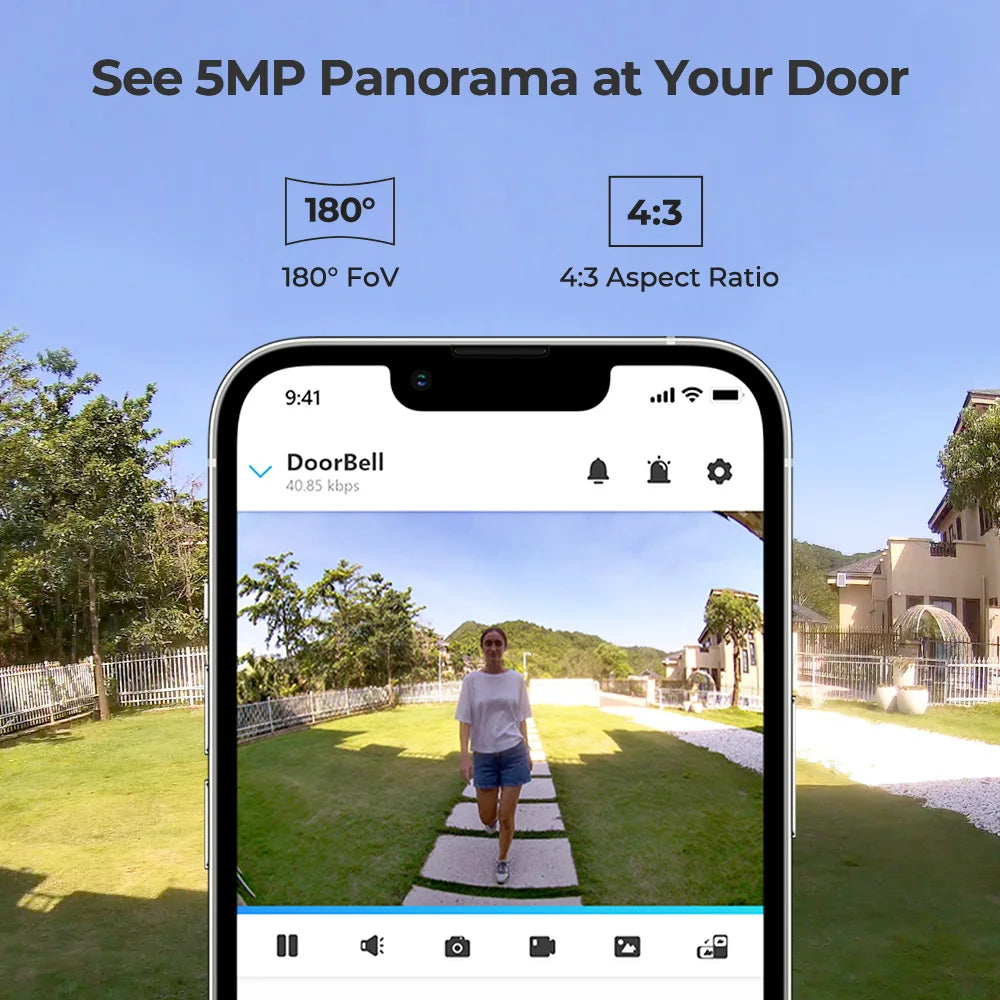

Field of View: Diagonal: 180°

Field of View: Horizontal: 134°

Field of View: Vertical: 97°

Pre-Motion Recording: Support

Audio: Two-way audio

Quick Replies: Support

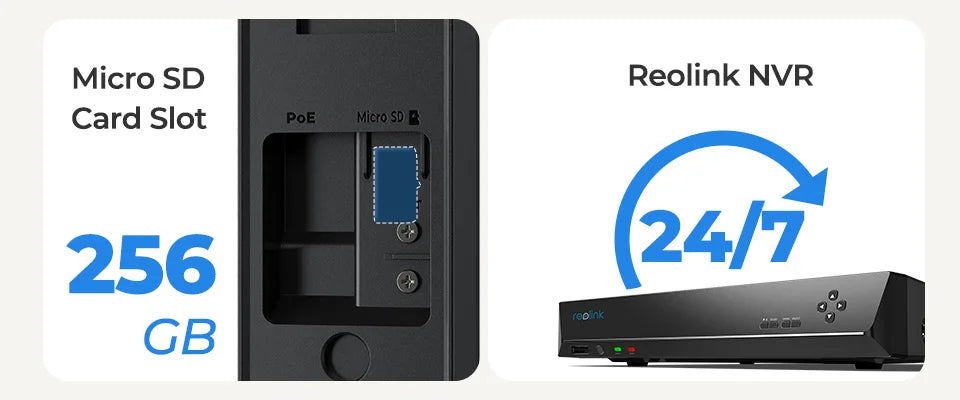

Storage: Micro SD card slot (Max. 256GB), works with Reolink NVR

Ethernet: One 10M/100Mbps RJ45

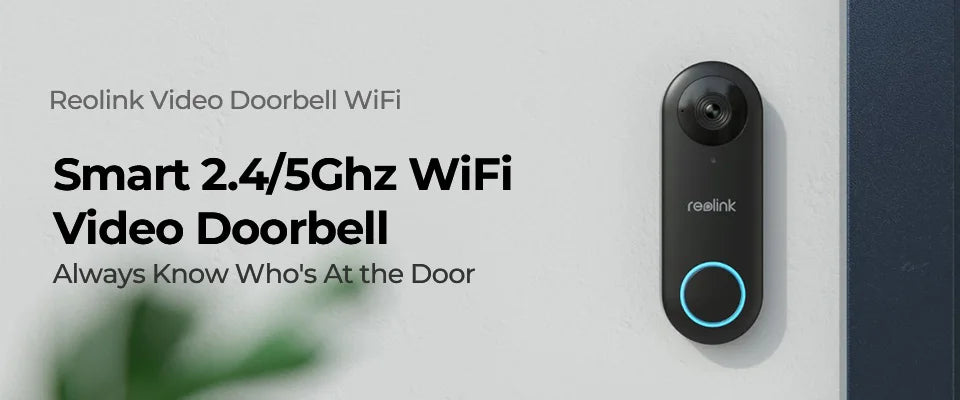

WiFi version: 2.4/5GHz WiFi

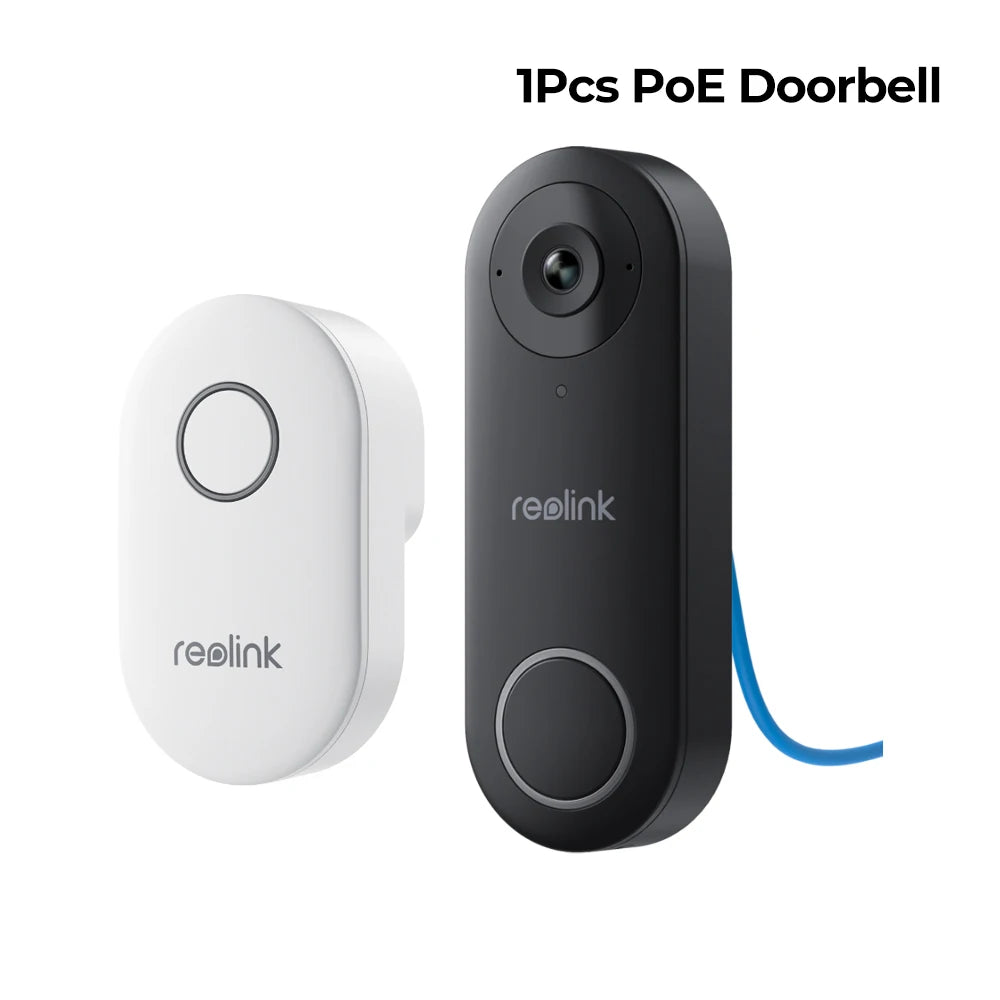

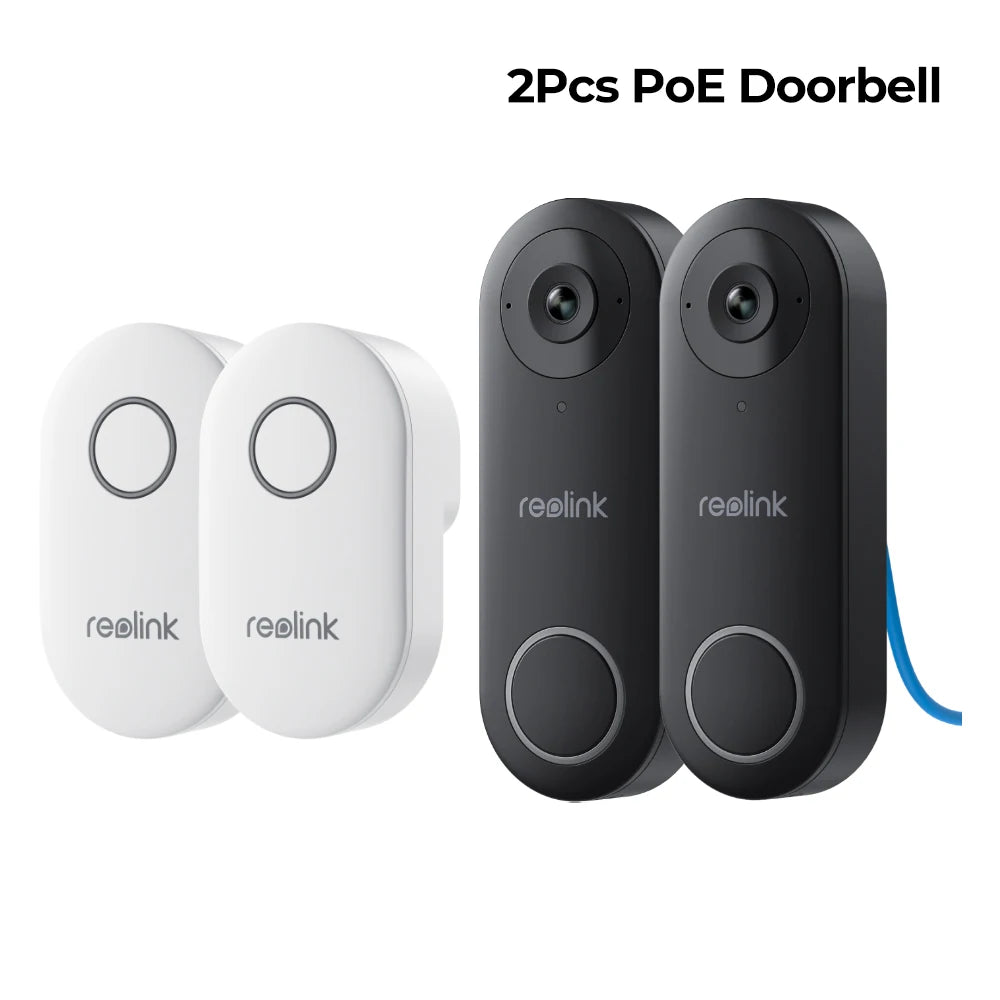

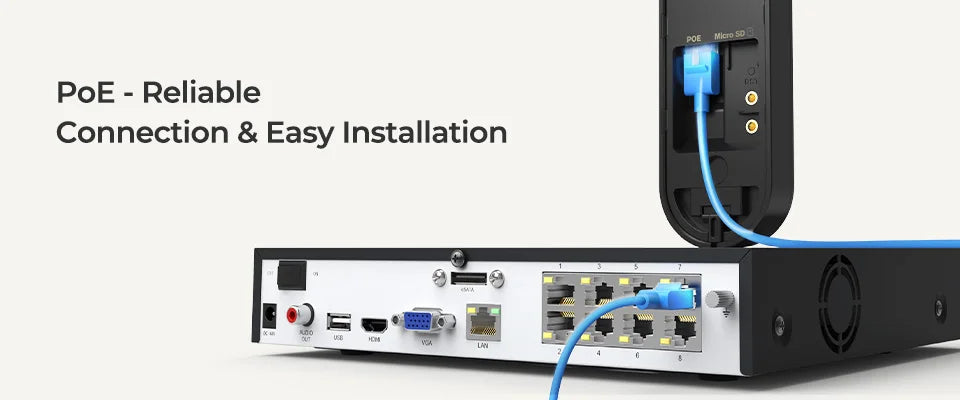

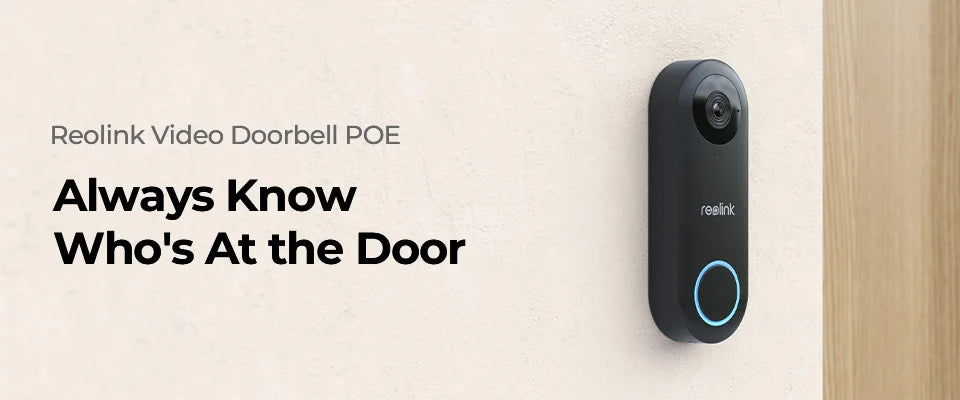

PoE version: IEEE 802.3af

Doorbell button: Yes

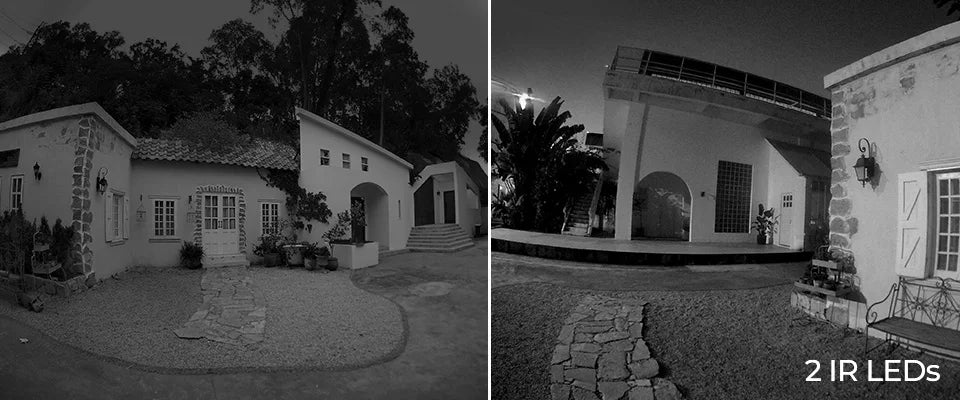

IR-light: 2pcs, 850nm

function 1: noise reduction, echo suppression

function 2: Person Detection

function 3: Pre-Motion Recording

Power of PoE version: PoE:IEEE 802.3af, 48V Active;Hardwired:12-24VAC 50/60Hz, DC 24V

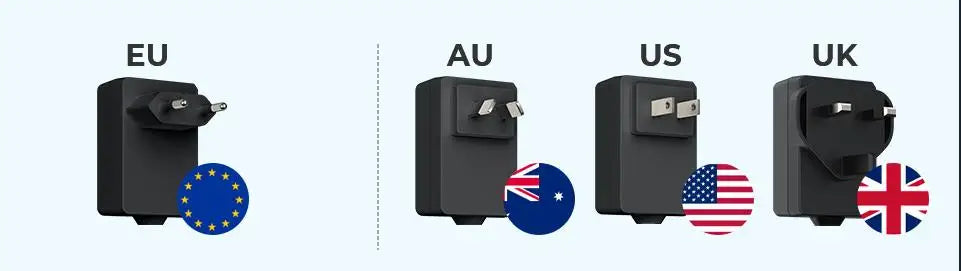

Power of WiFi version: Hardwired:12-24VAC 50/60Hz, DC 24V

Audio Interfaces: Built-in 2 microphones & a speaker

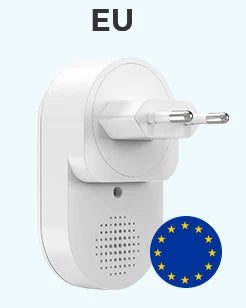

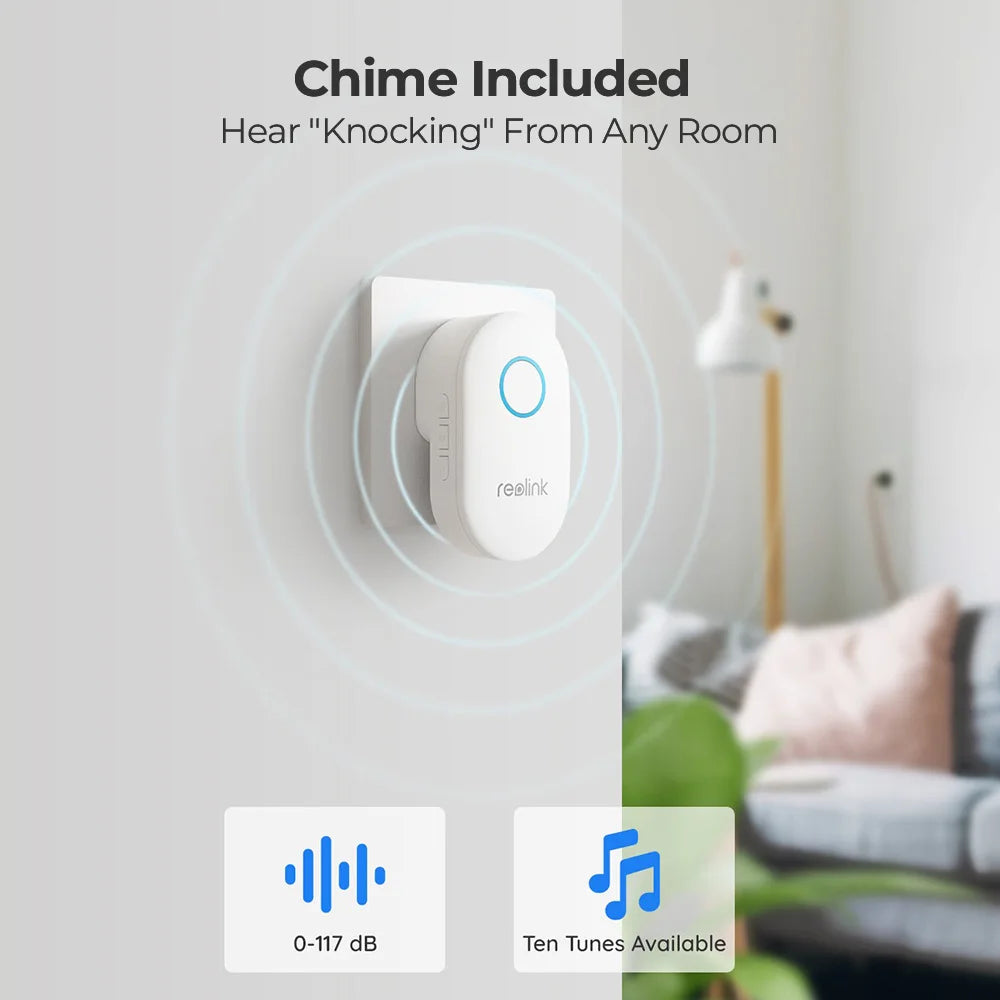

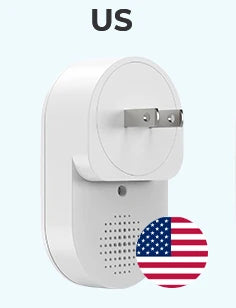

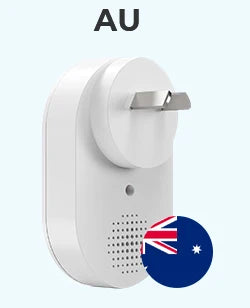

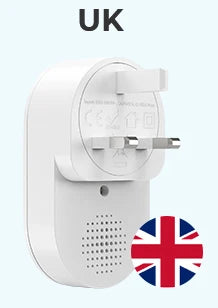

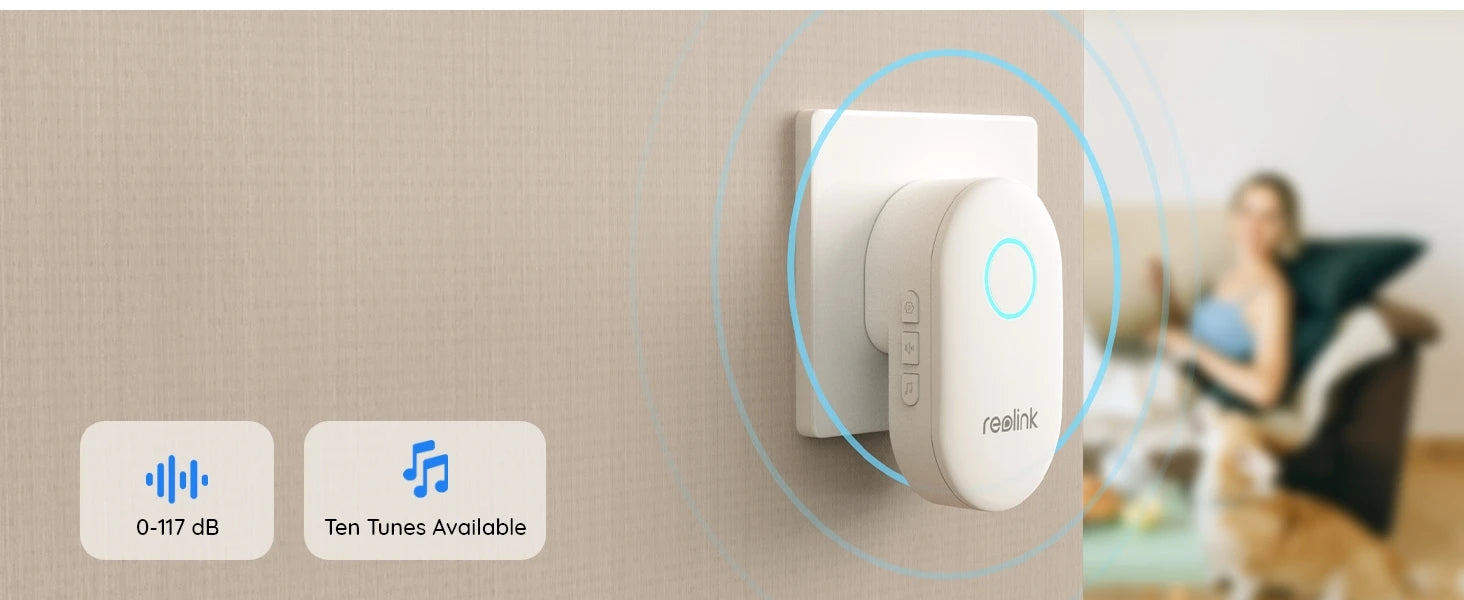

Input of Chime: AC 100-240 V; 50-60 Hz

Button of Chime: For setting up/selecting ringtones/adjusting volume

Number of Selectable Ringtones: 10 ringtones

Working Environment: Temperature: -20℃~50℃; Humidity: <85%

Size of Doorbell: 133mm(H) x 48mm(W) x 23mm(T)

Material of Chime: ABS+PC

Weight: 96g
